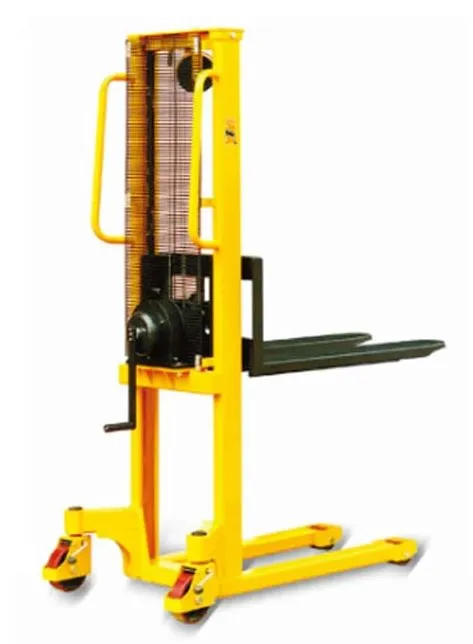

Aiko 0.5T 1.56M Winch Stacker  | Model : PT-WS50

Features :

• Compact and service free design.

• Unique design of winch for easier and safety lifting.

• Heavy duty "C" section mast.

• Manual Adjustable fork width from 160mm to 690mm(WS50).

• Two parking brakes on steering wheels.

Specifications :

• Model : WS50
• Capacity : 500 kg
• Load Center : 500 mm
• Max. Fork Height : 1560 mm
• Lowered. Fork Height : 90 mm
• Fork Adjust Width : 160 - 690 mm
• Fork Width : 70 mm
• Fork Length : 1000 mm
• Effort Force to Rated Load : 120 mm
• Lifting Height per stroke : 22 mm
• Ground Clearance : 18 mm
• Min. Turning Radius (outside) : 1075 mm
• Front Load Roller : Φ80 x 47 mm
• Steering Wheel : Φ150 x 40 mm
• Overall size (LxWxH) : 1325 x 725 x 2030 mm
• Net Weight : 146 kg

  *Please take note only for open pallet
