DESCRIPTION

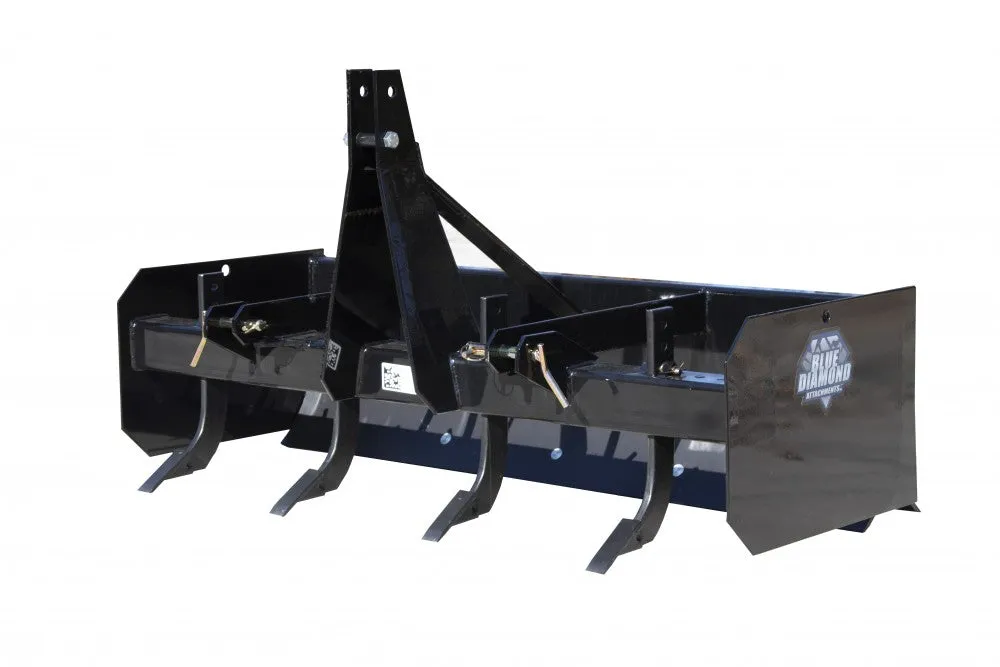

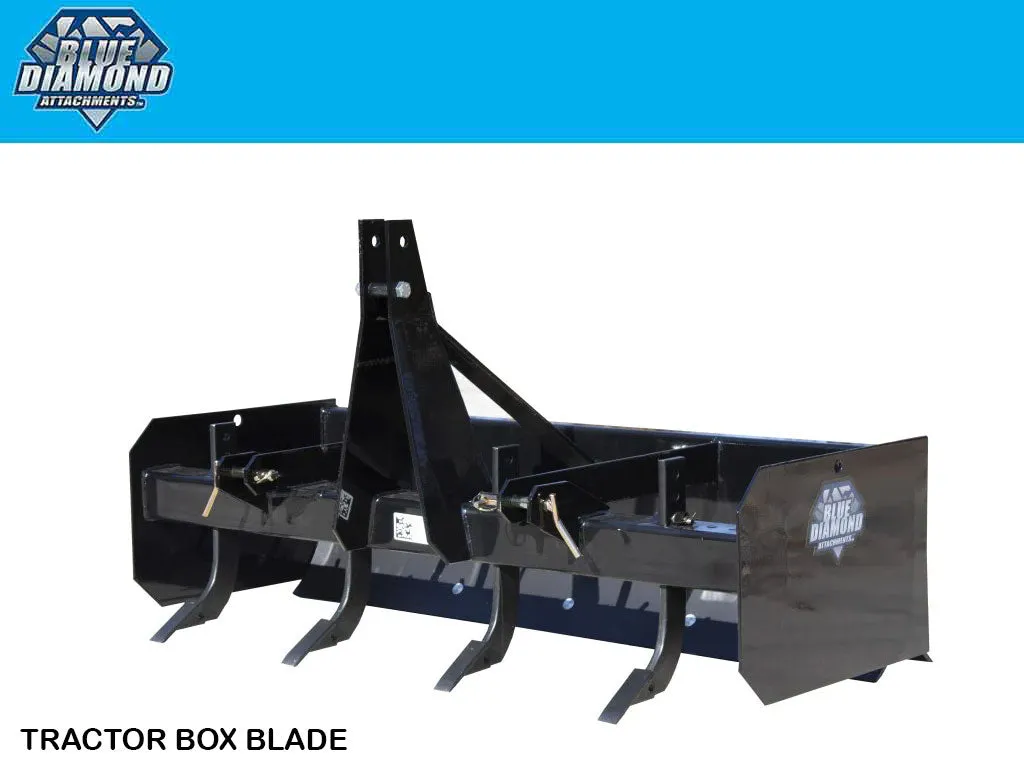

BOX BLADE SCRAPER
The Standard Duty Blue Diamond® Box Blade Scraper is designed for working topsoil, gravel, mulch, or manure. Ideal for use on the farm, at building sites, or outdoor arenas. This scraper works with 15 hp to 45 hp tractors and is available in 2 widths, 48” and 60”. It features 3 or 4 adjustable ripper shanks (depending on the width of the unit).
For tougher jobs, the Heavy Duty Blue Diamond® Box Blade scraper will stand up to the tasks required to maintain your farm, building site, or landscaping projects. This unit makes quick work of ripping up dirt, grading and leveling land or spreading soil. Models are available in 3 working widths from 72” to 96”, have adjustable heavy-duty ripper shanks, are compatible with a Category 1 and Category 2 quick hitch, and are designed to work with 30 hp to 70 hp tractors.
FEATURES INCLUDE
- Adjustable ripper shanks
- Heavy-duty construction
- 2-year warranty
PRODUCT SPECS
| MODEL | HORSEPOWER | WIDTH | MOLDBOARD HEIGHT | OVERALL DEPTH | WEIGHT | NUMBER OF SHANKS | A-FRAME MATERIAL | CUTTING EDGES | QUICK-HITCH COMPATIBLE |
| 48" | 15-45 | 48" | 17" | 22" | 290 lbs | 3 | 3/8" | 6" | Yes |
| 60" | 15-45 | 60" | 17" | 22" | 323 lbs | 4 | 3/8" | 6" | Yes |
| 72" | 30-70 | 72" | 17" | 22" | 530 lbs | 5 | 1/2" | 6" | Yes |
| 84" | 30-70 | 84" | 17" | 22" | 586 lbs | 6 | 1/2" | 6" | Yes |
| 96" | 30-70 | 96" | 17" | 22" | 640 lbs | 6 | 1/2" | 6" | Yes |
